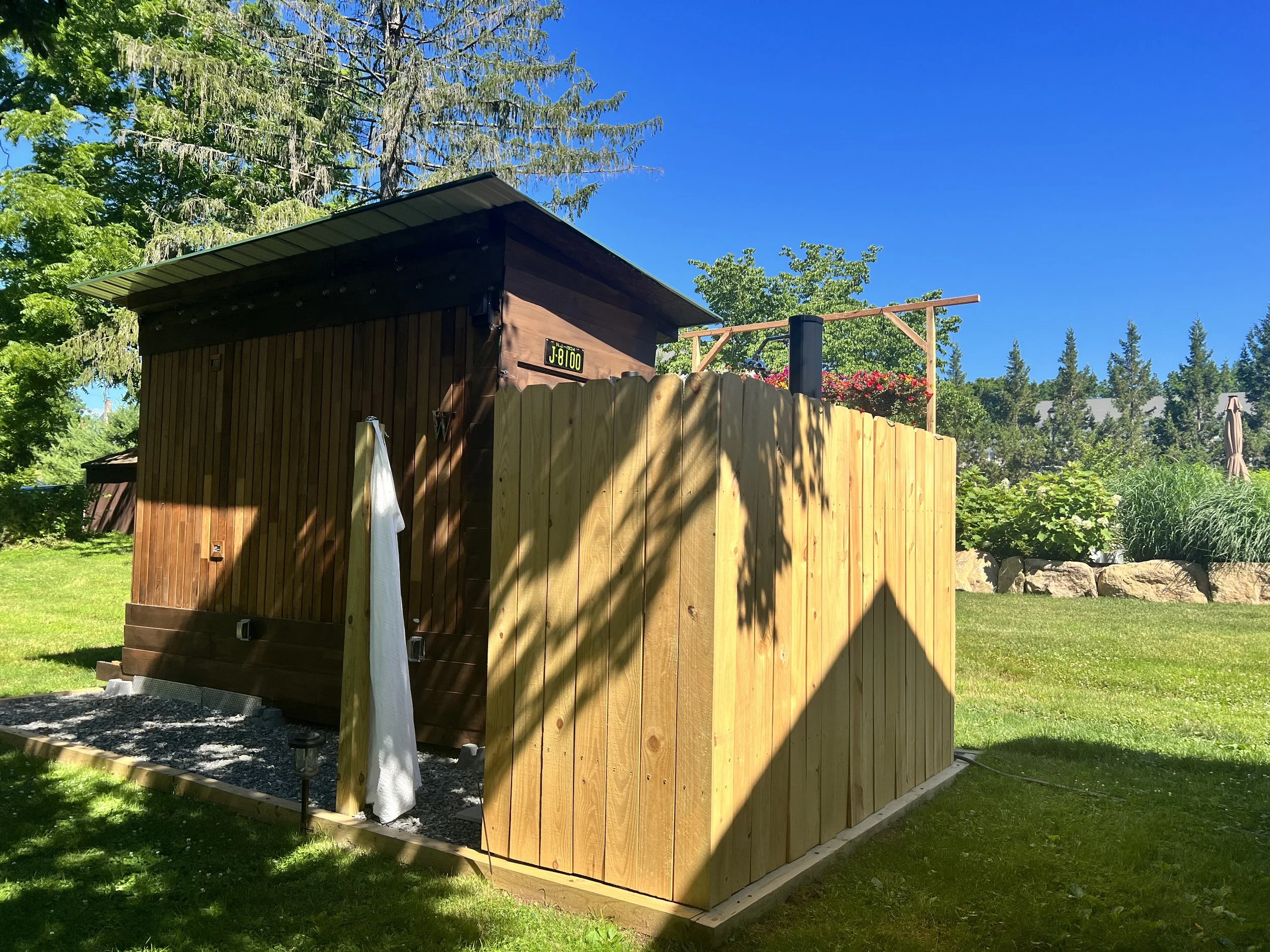

New sauna in the backyard with privacy area. Rebuilt using a 1980s sauna. Vertical cedar slats are two sided (in and out with R16 insulation). Horizontal base is new, R16 insulation. Floor is built 6" above clean stone. R5 Rigid insulates plywood covered with cement layer.

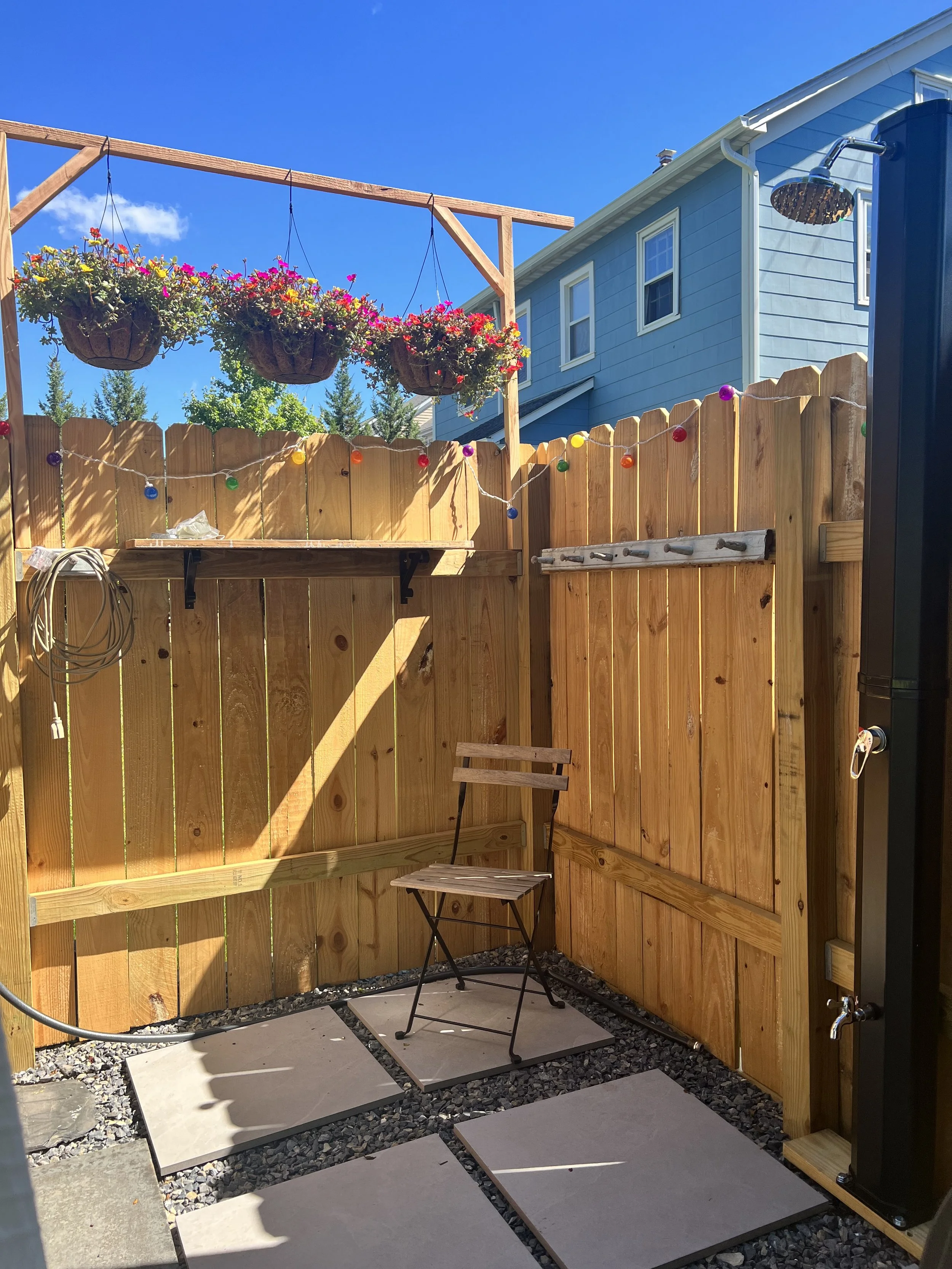

Privacy area with shower.

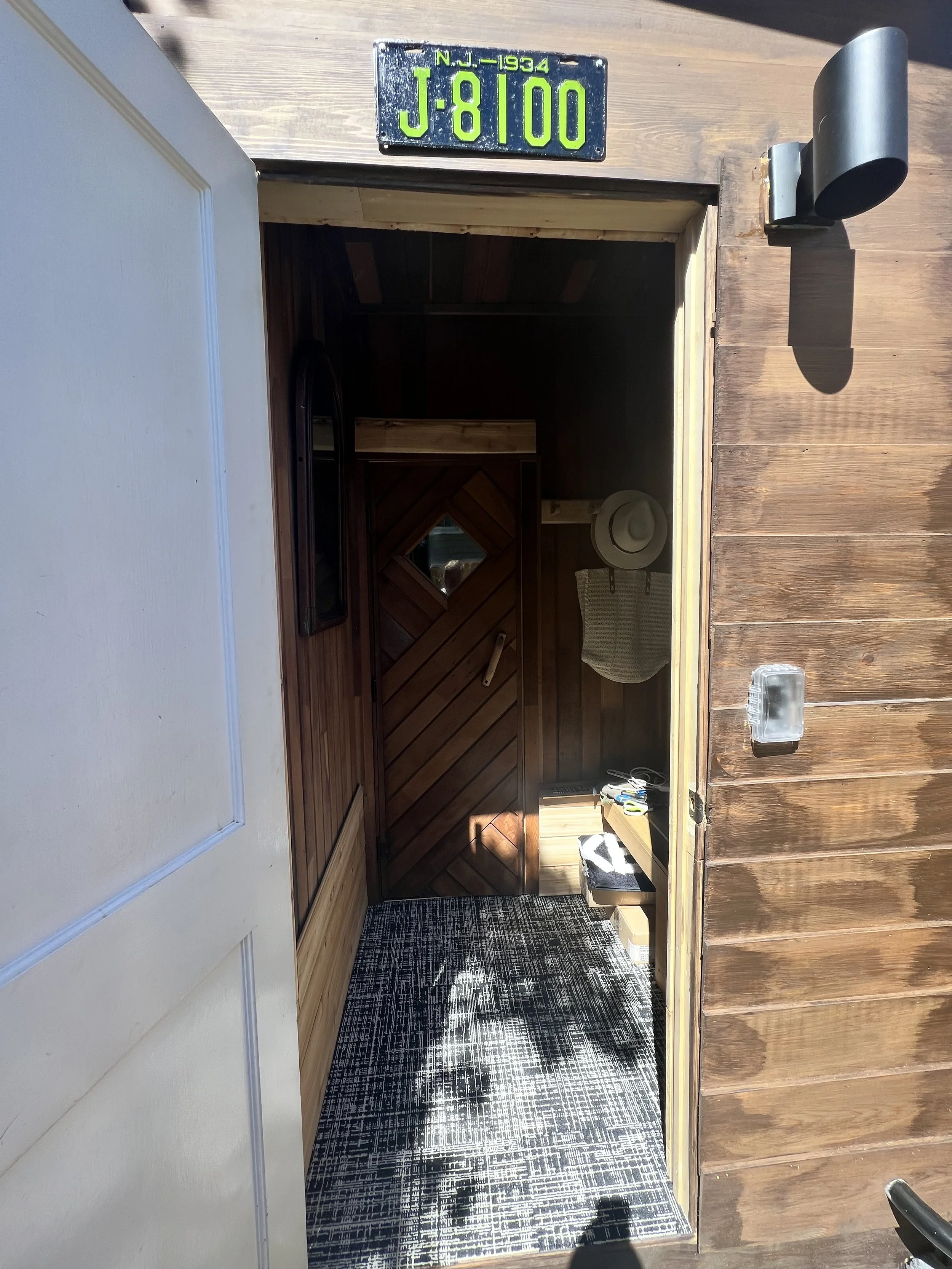

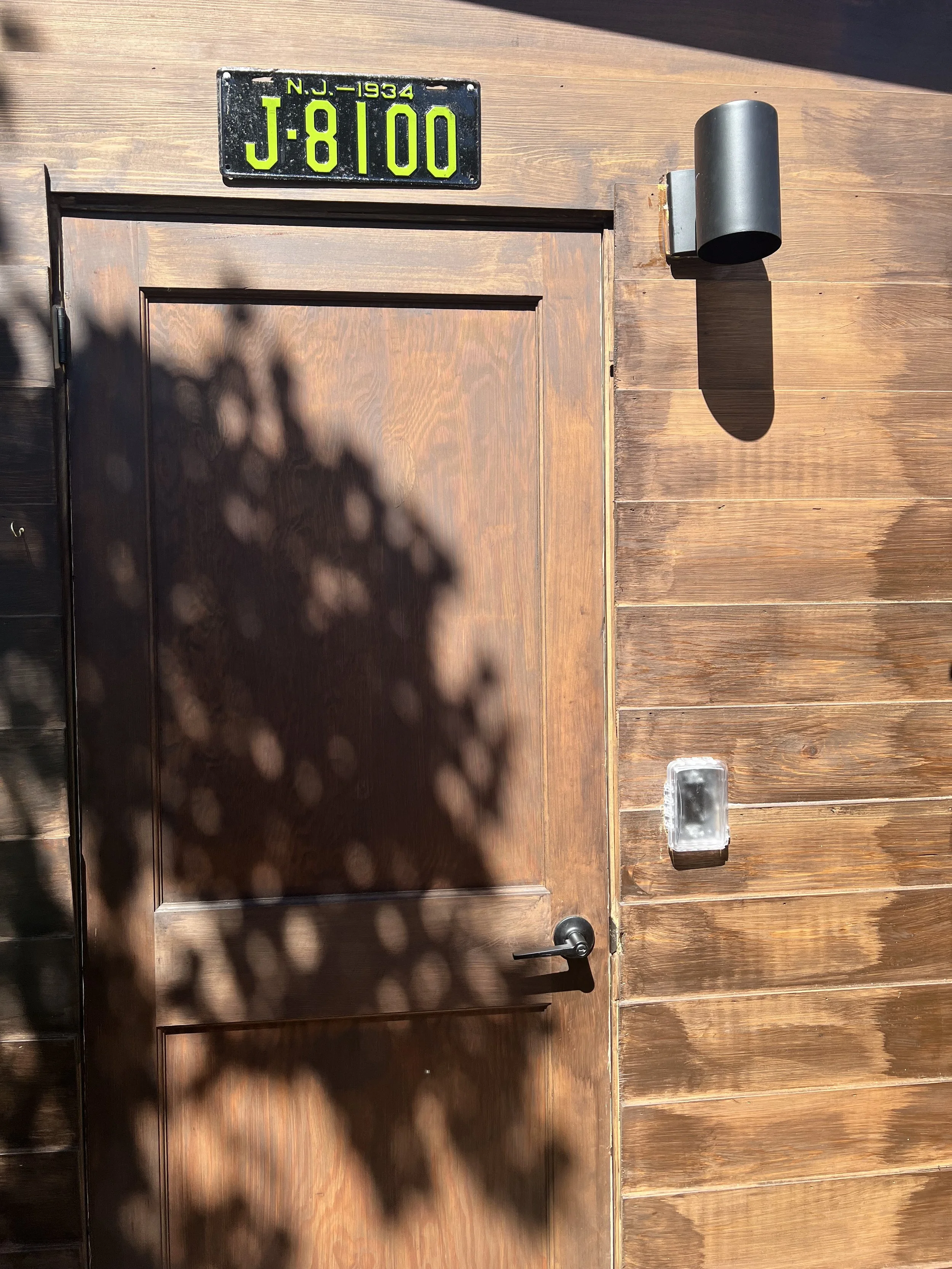

Door to dressing room.

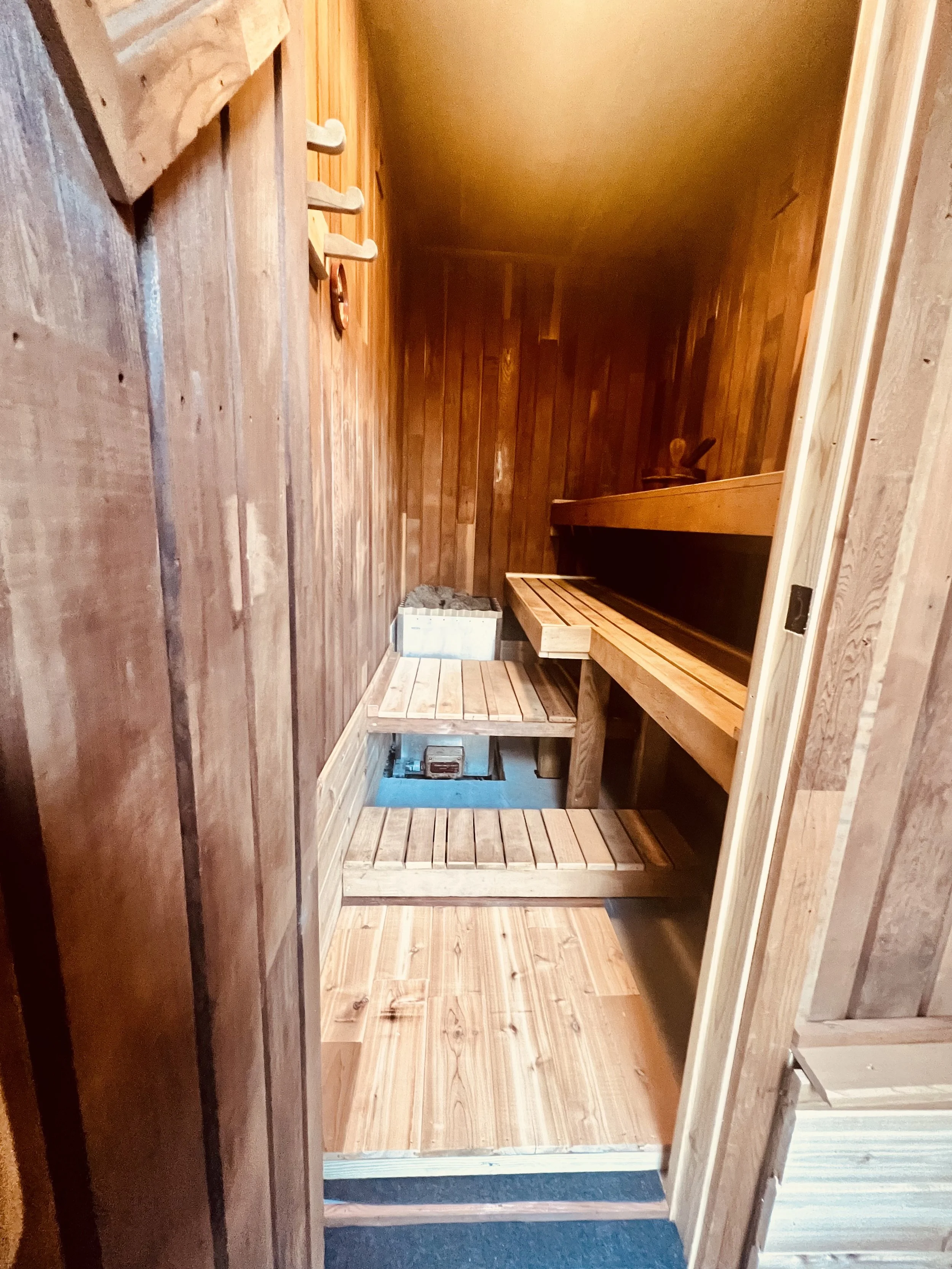

Dressing room/Entrance to sauna.

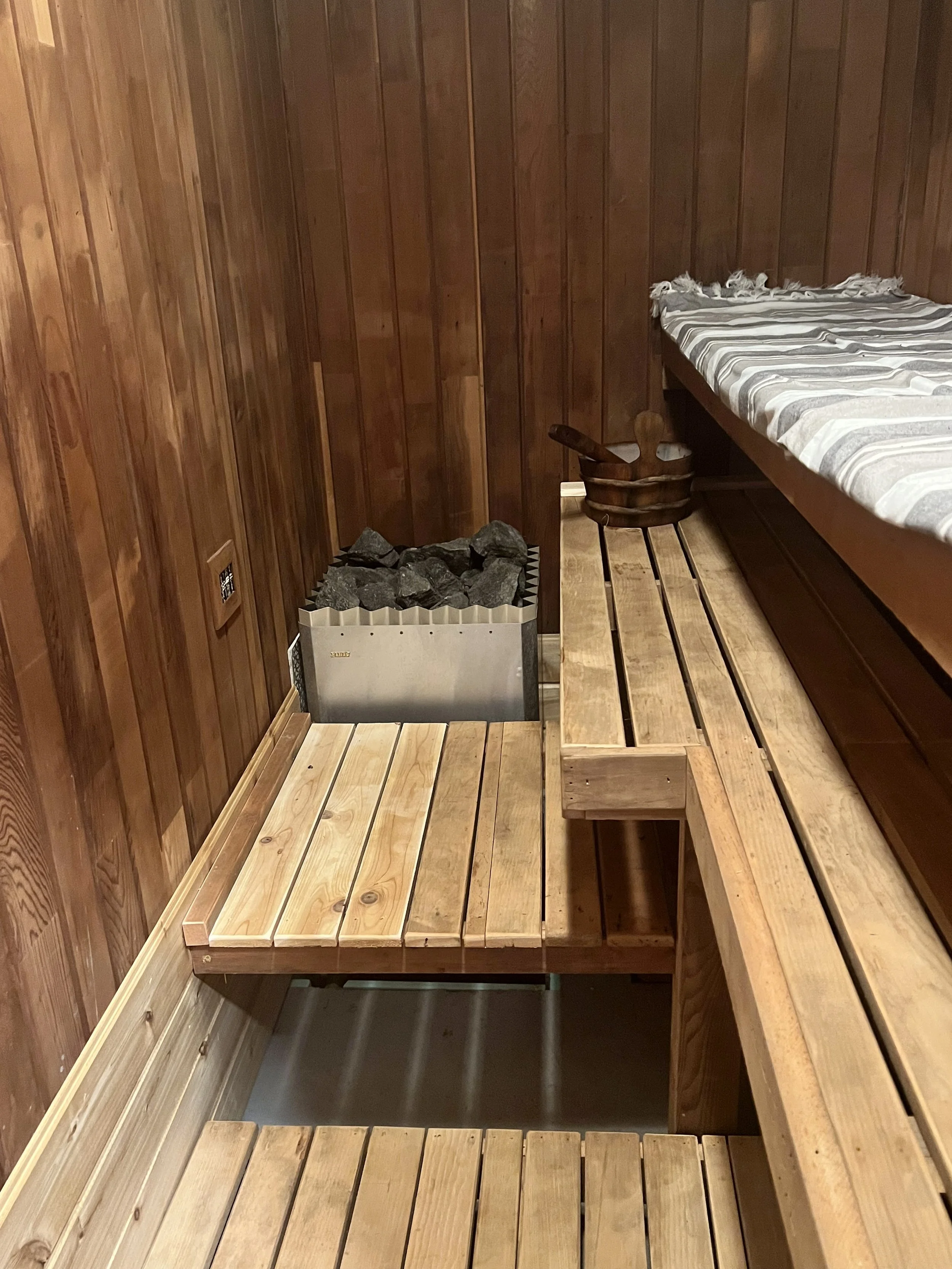

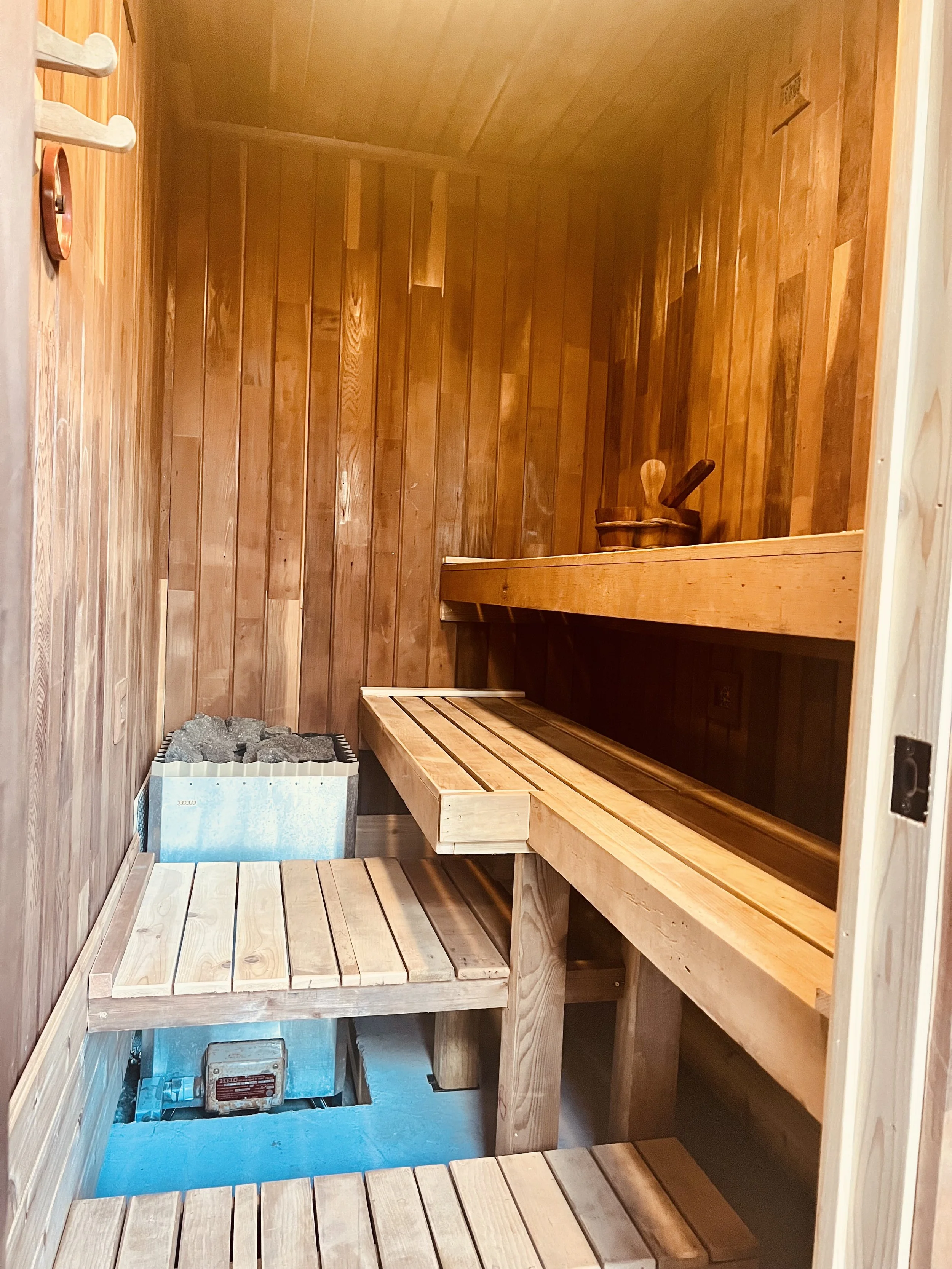

Current interior sauna build out. 4 cedar bench layers--with a trimmed foot bench to allow for door clearance.

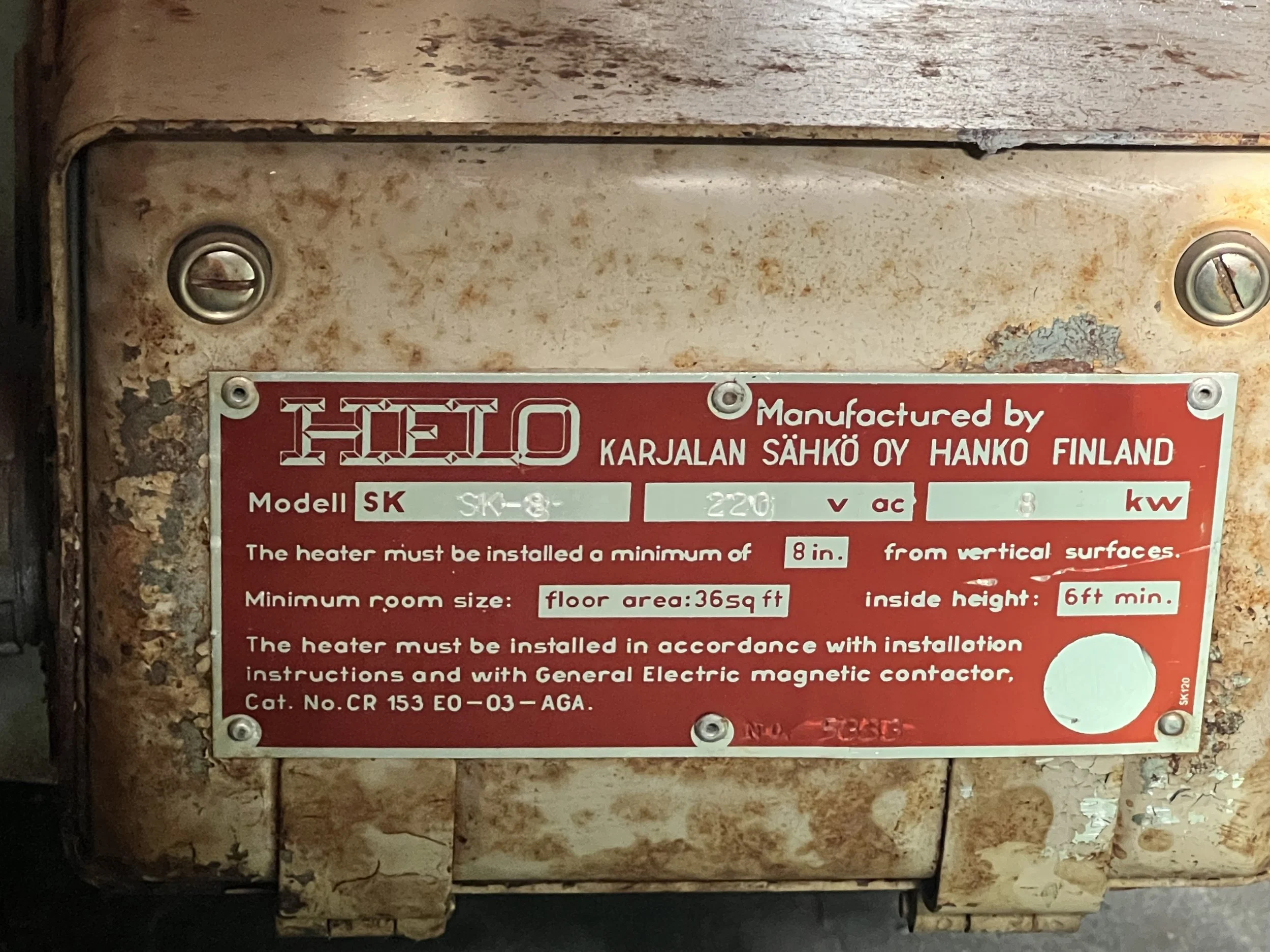

Original sauna heater. SK-8. 8kw. 21 inch square, 37" high.

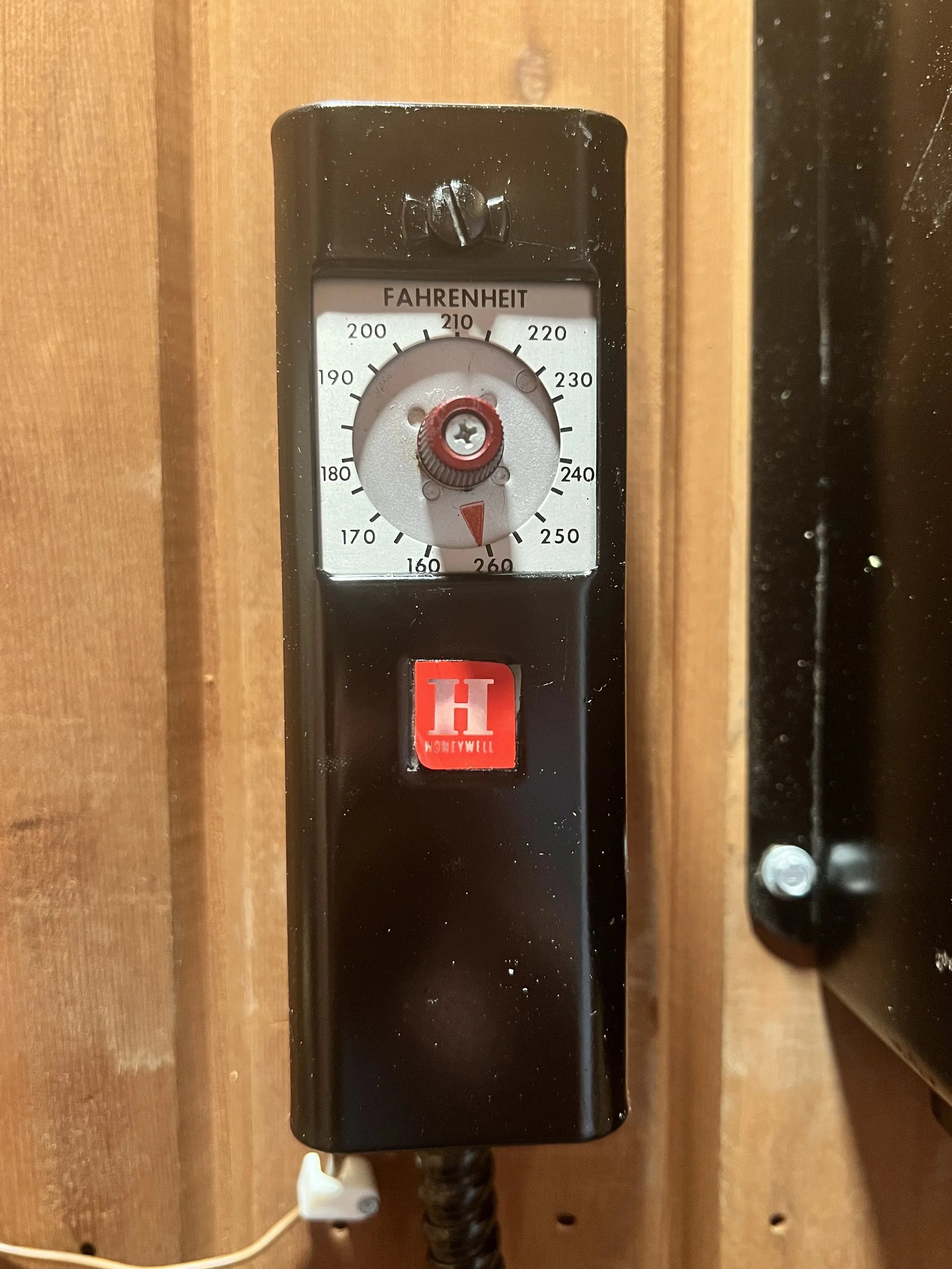

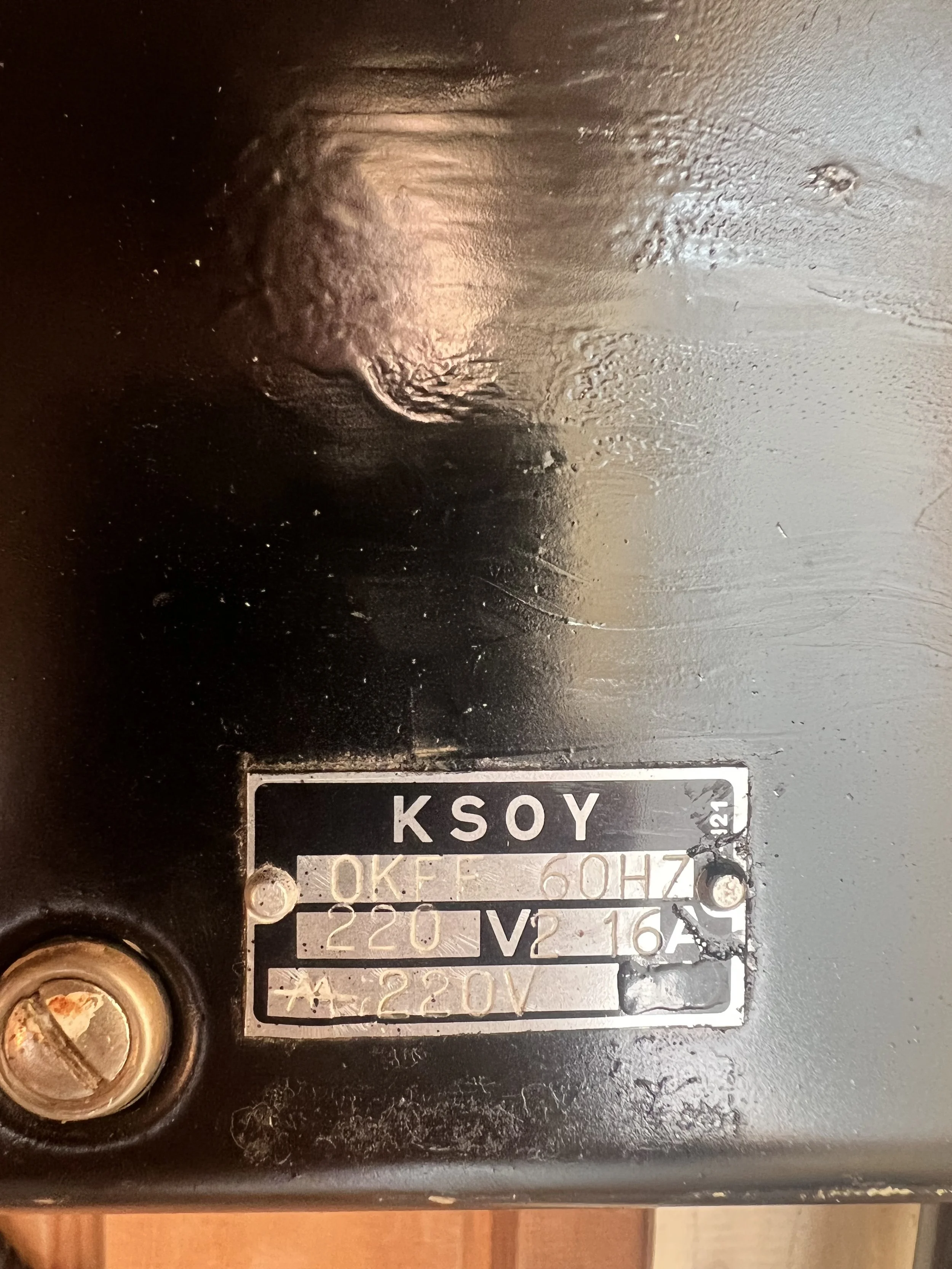

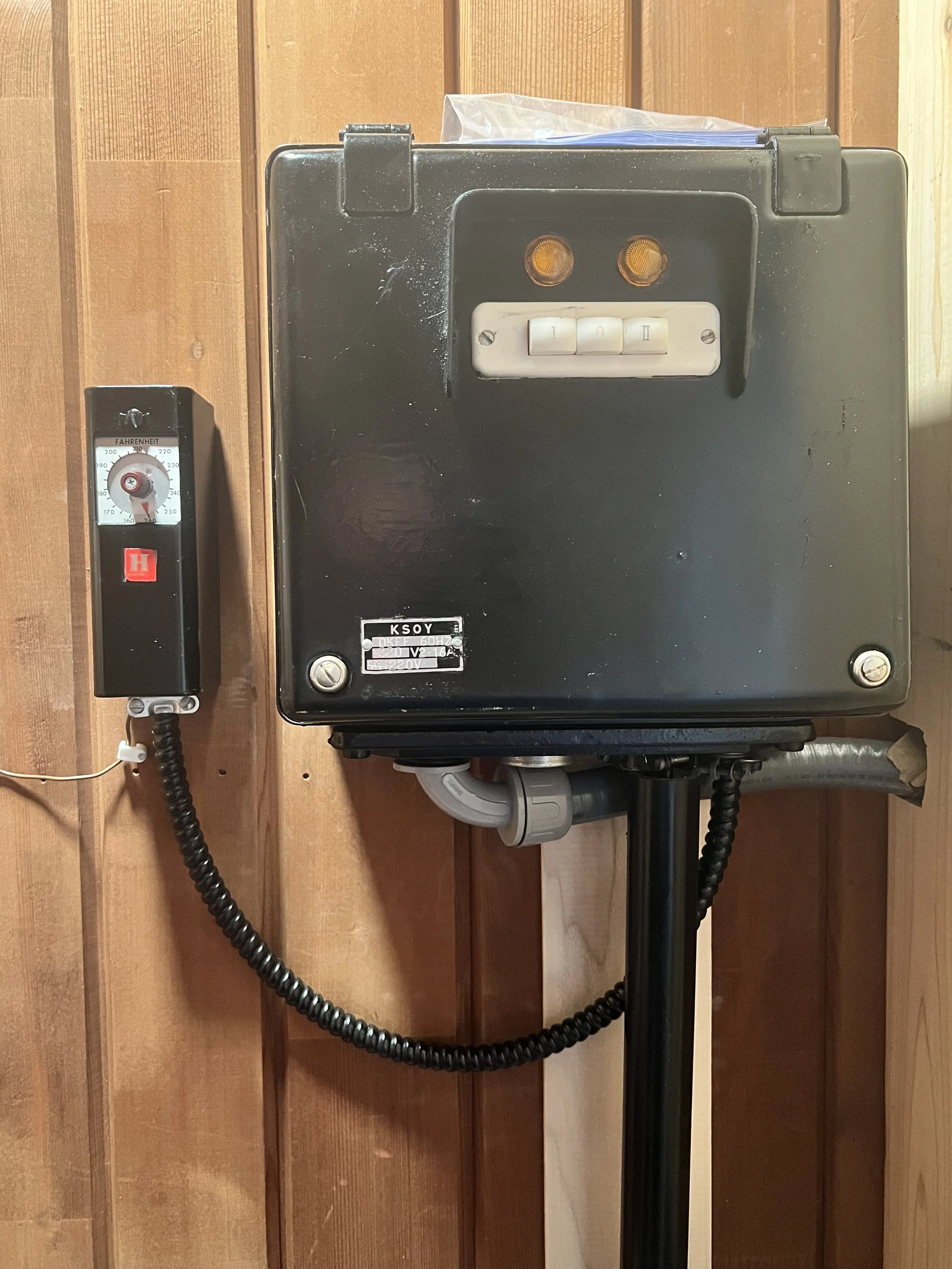

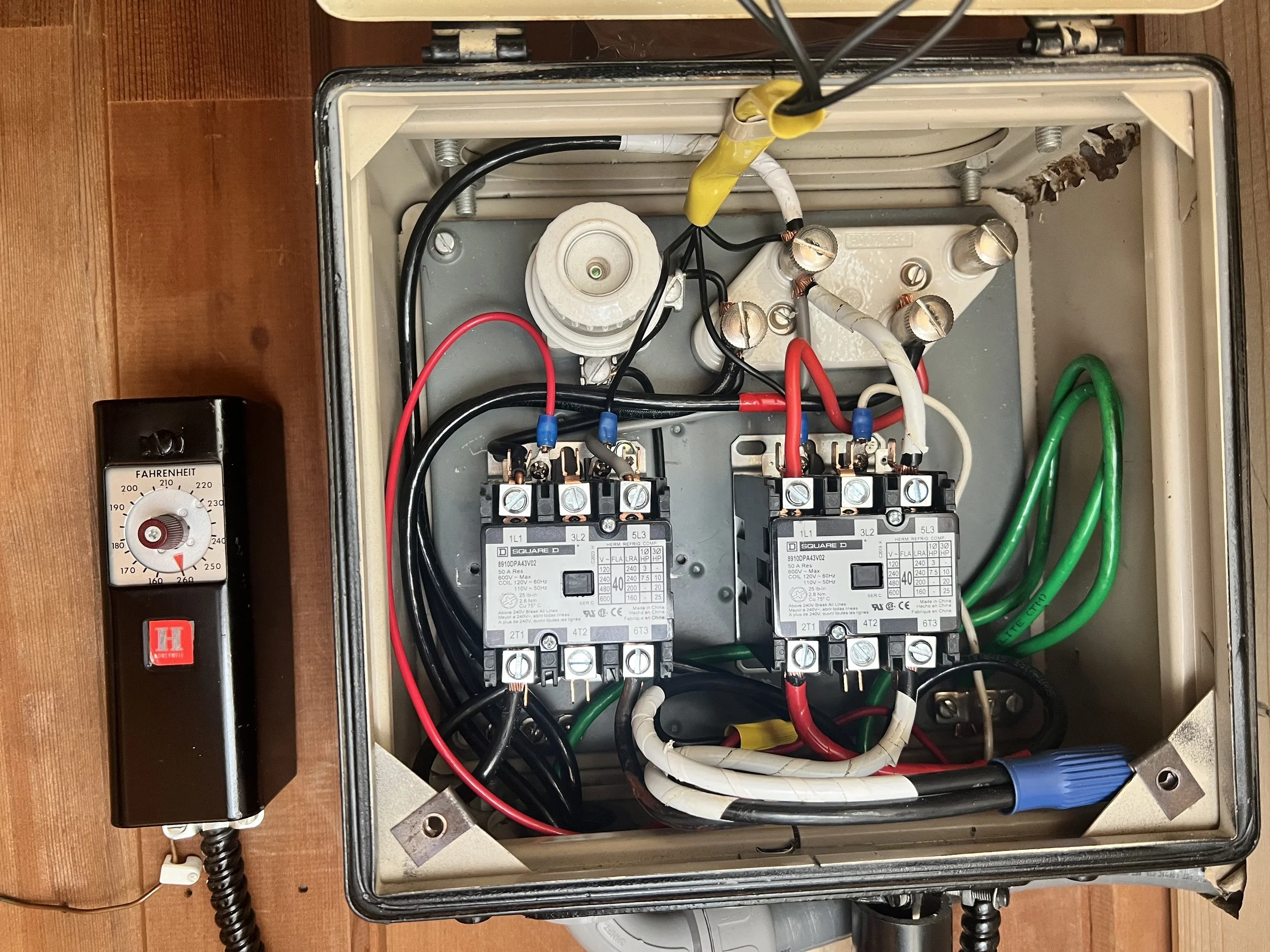

Contactor box and t-stat in dressing room.

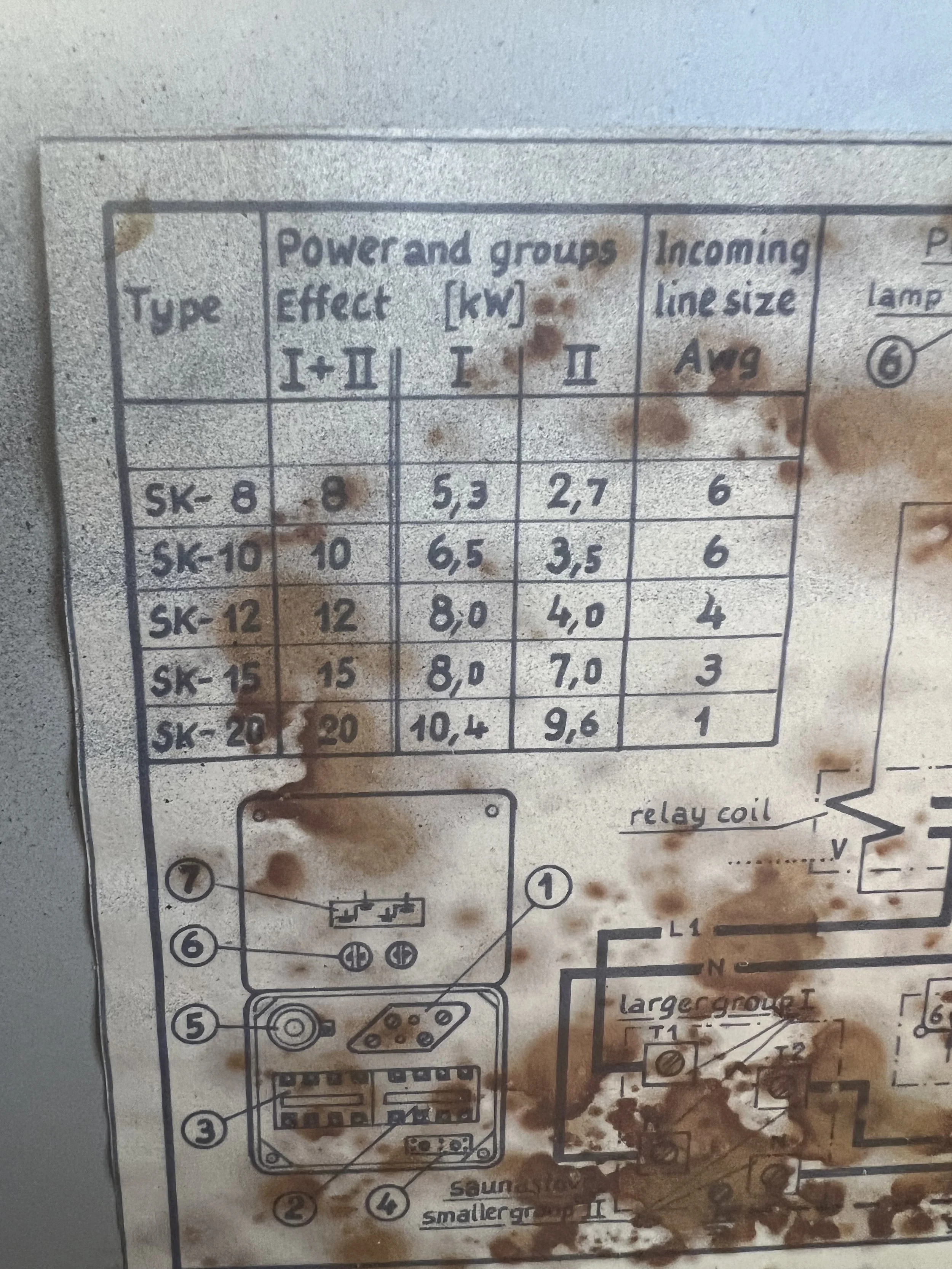

Two button setting--both buttons are supposed to provide full power. Meter readings show full power going to heater.

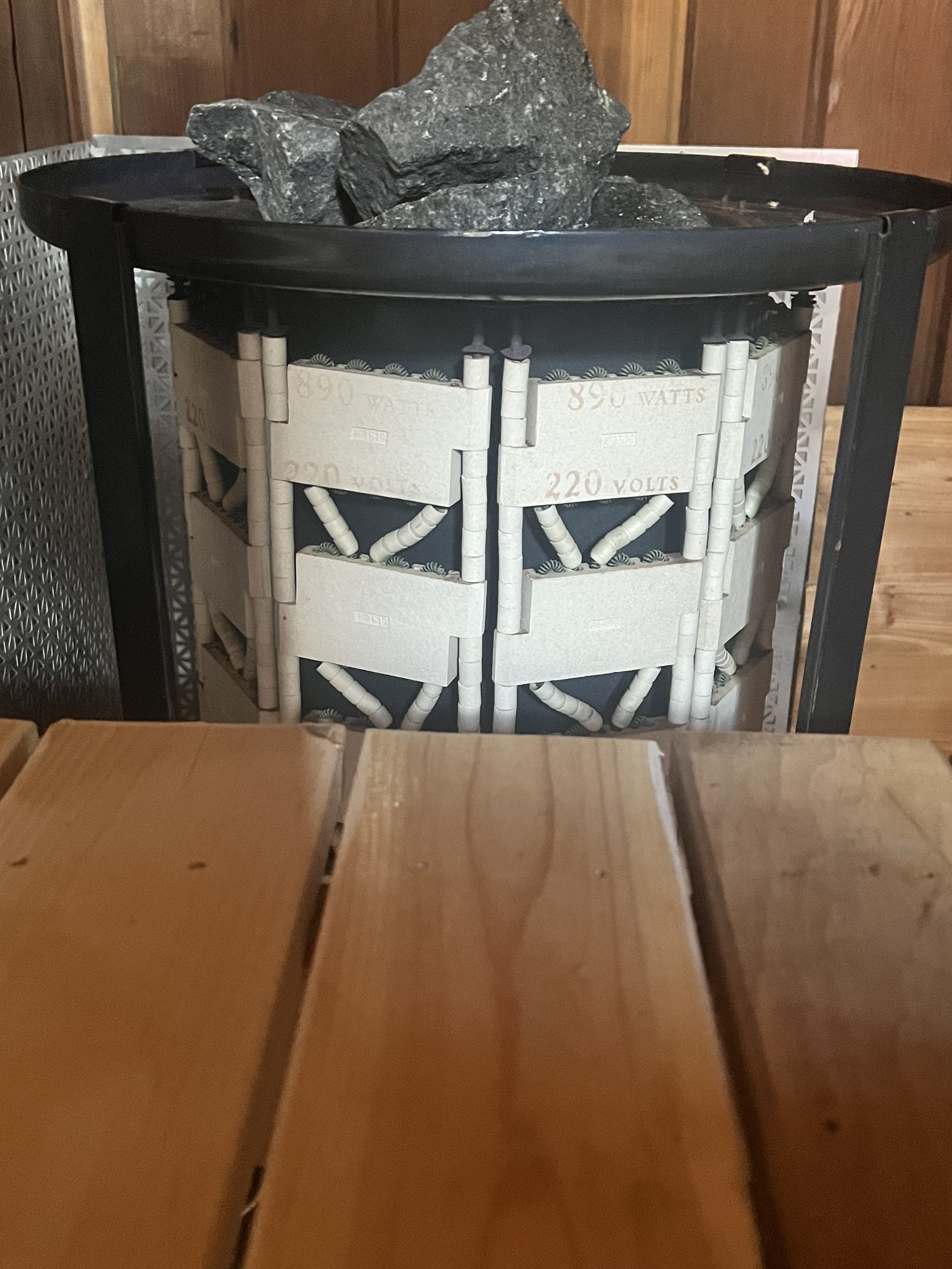

Sauna heater without cover. This is at 140*F. Coils are not glowing--which makes me think heater is faulty (it is second hand). I know its getting full power--electrician tested everything today.
Close up of heater without cover.

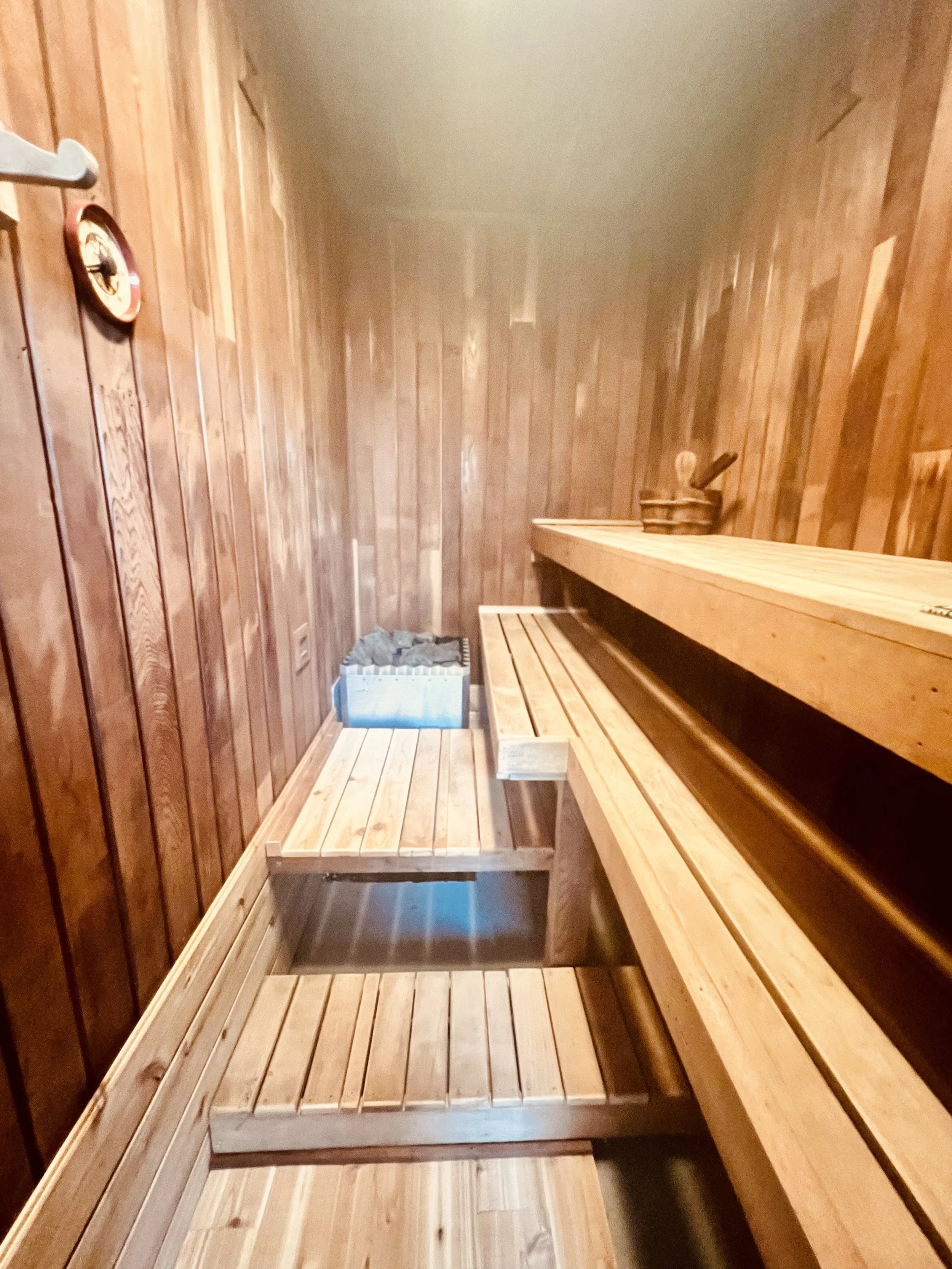

Sauna interior. 4 levels. Interior space is 96" high, 53" wide and 91" long. Foot bench is approx 8" above sauna stones. Plan to create railing around heater.

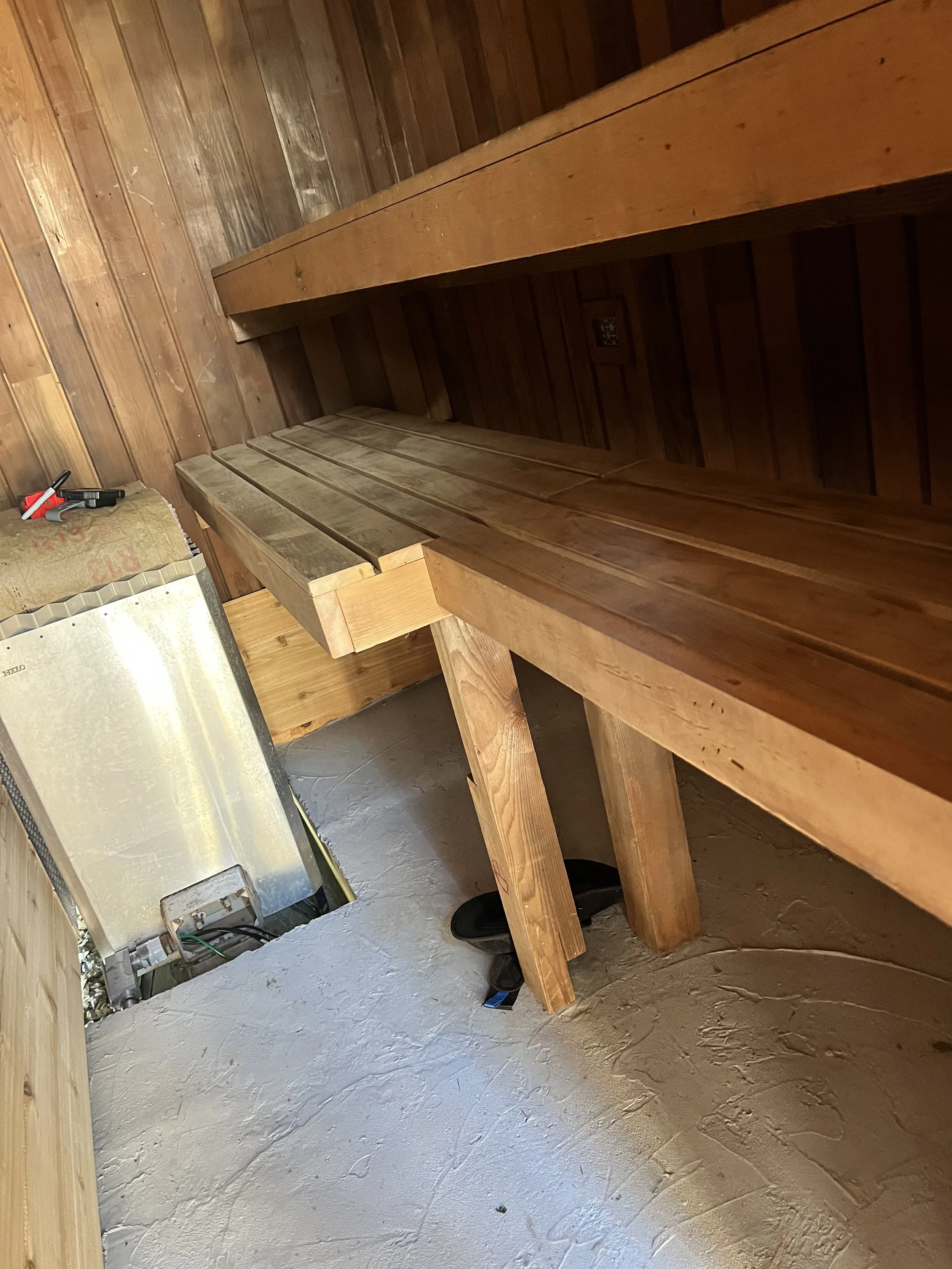

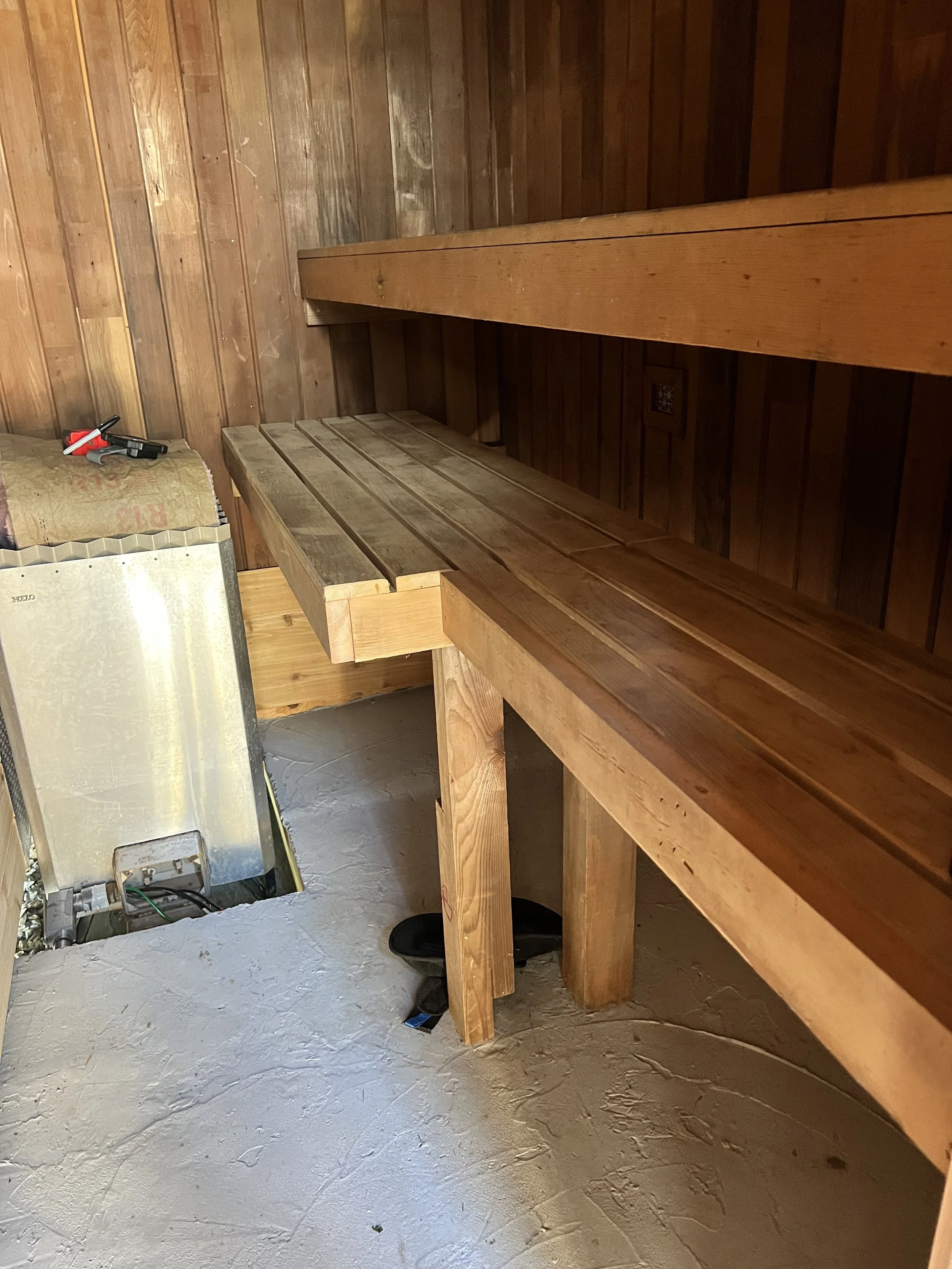

Image from build out. Sauna heater sits approx 6" below main floor. Sits on thick slate on clean stone. Rigid R5 insulation around.

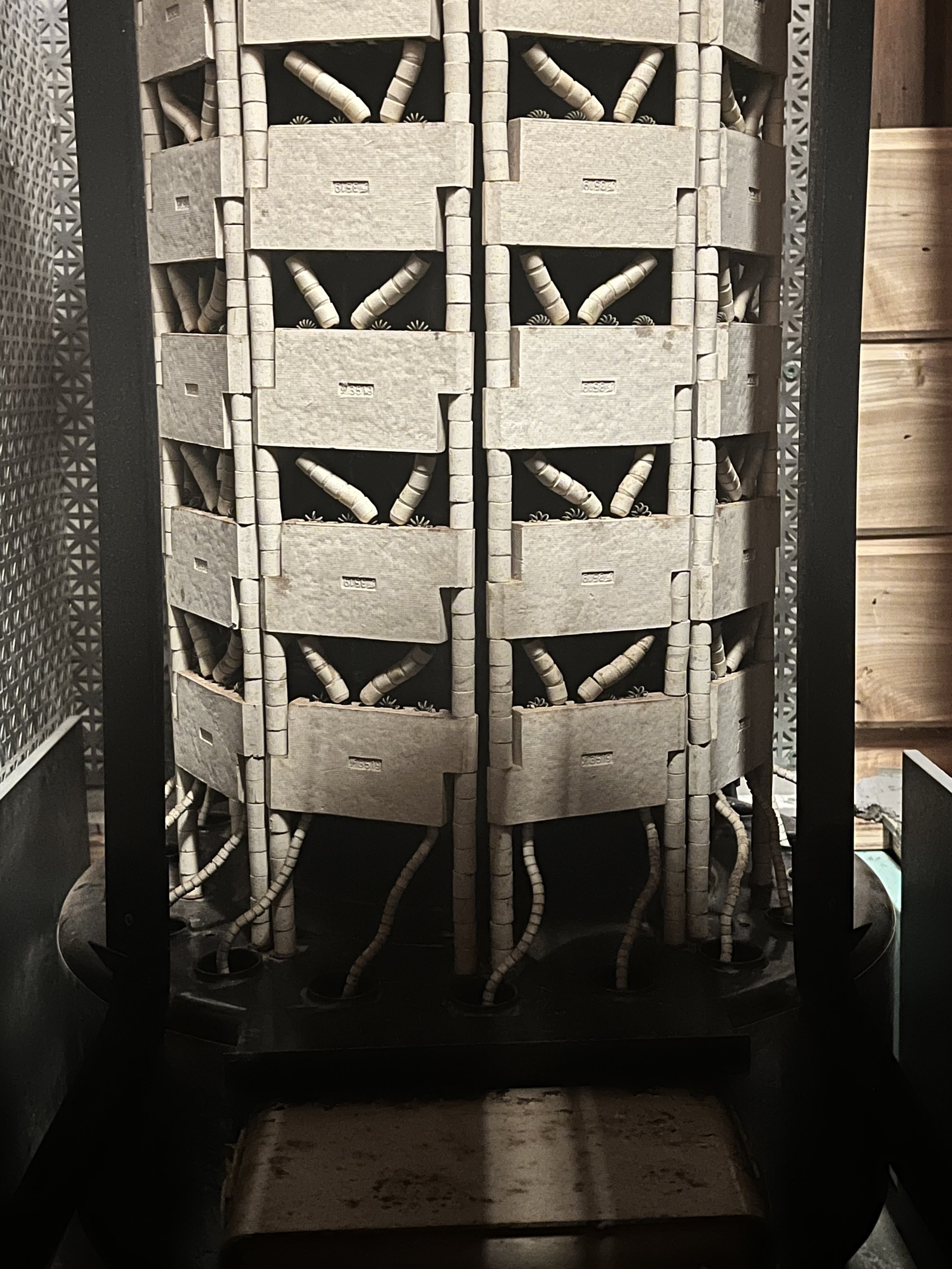

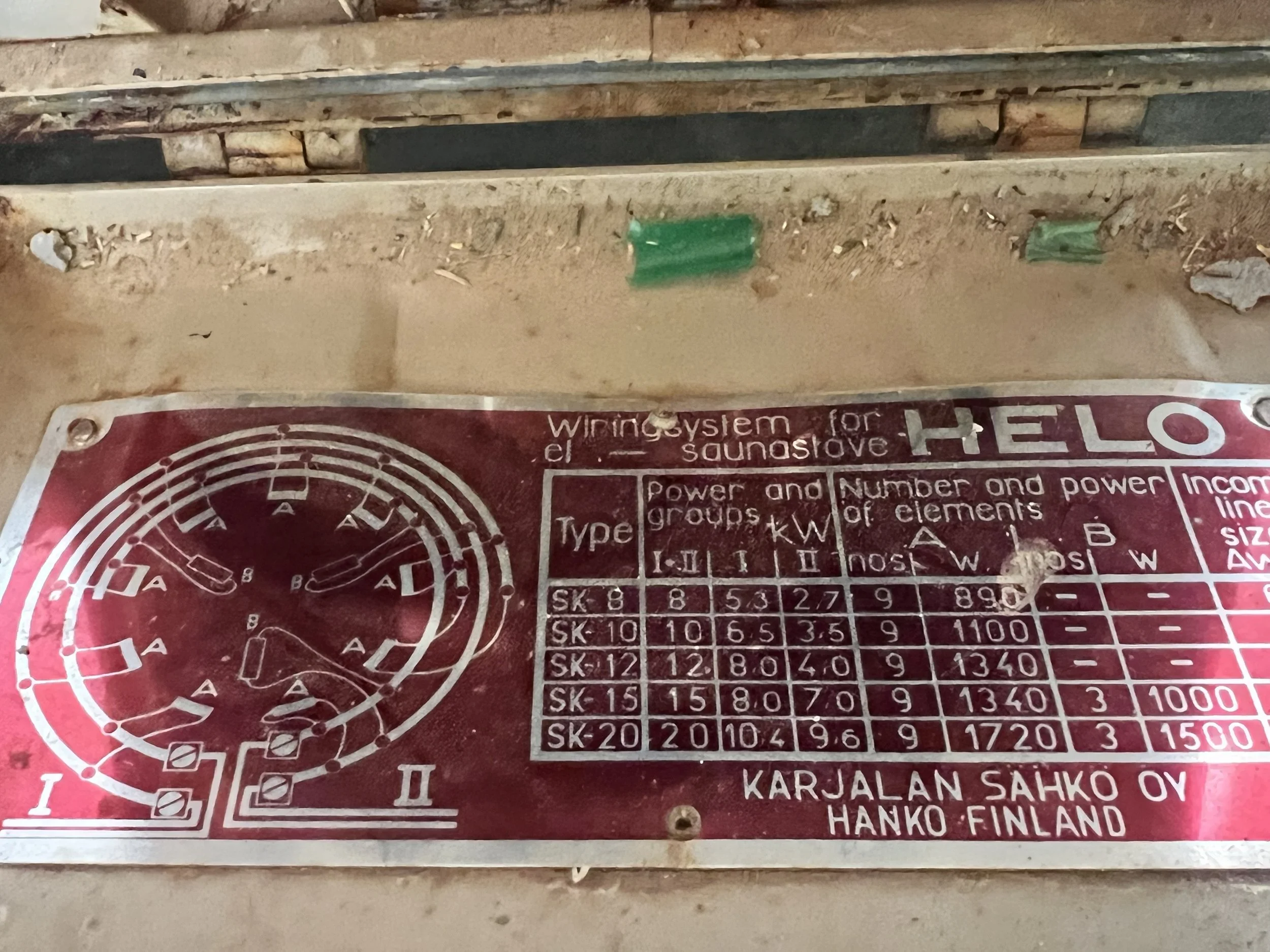

Heater with covers removed. HELO Pro SK-8 (8kw 220v)

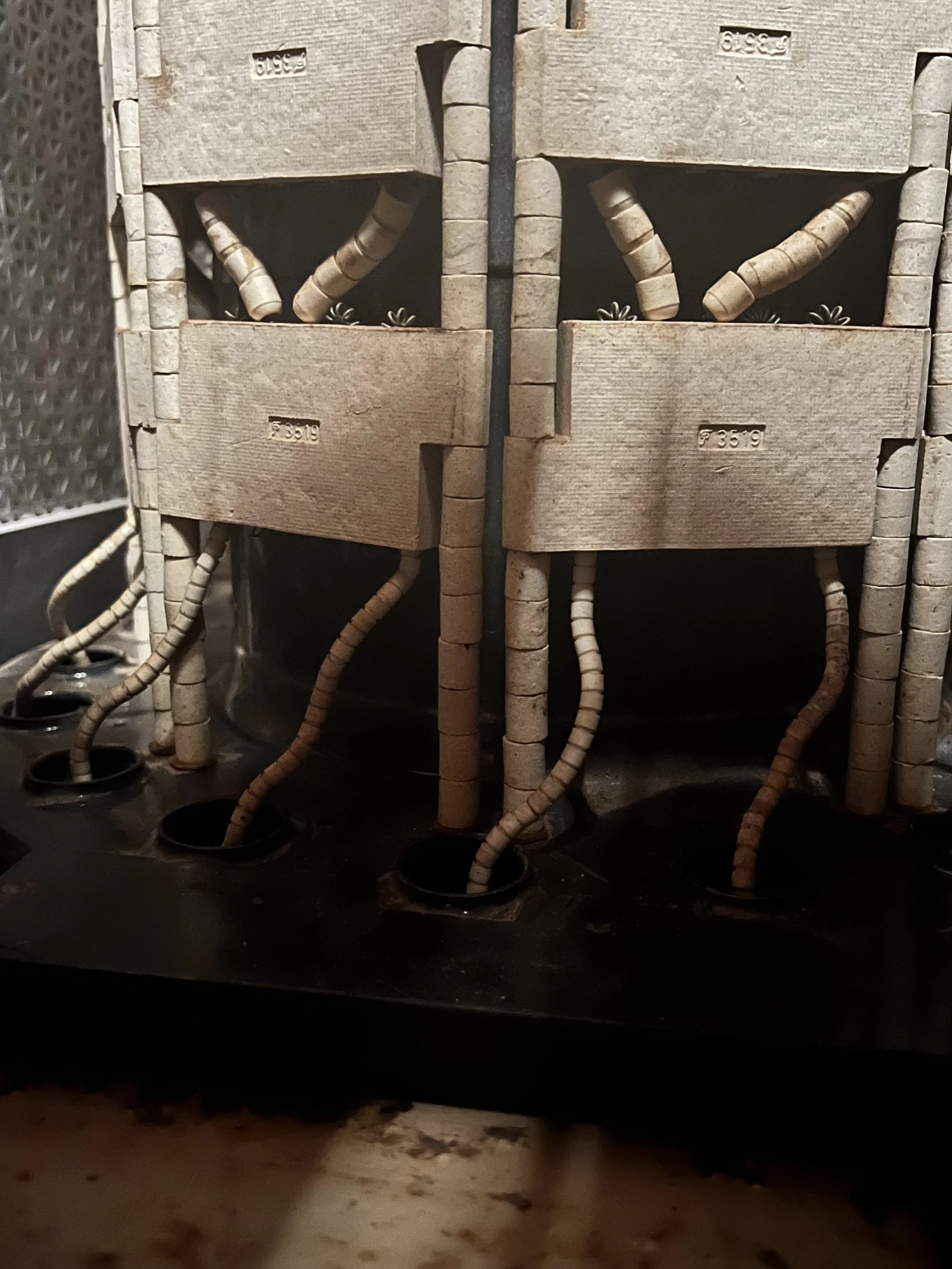

Ceramic and coils wraps around cylinder.

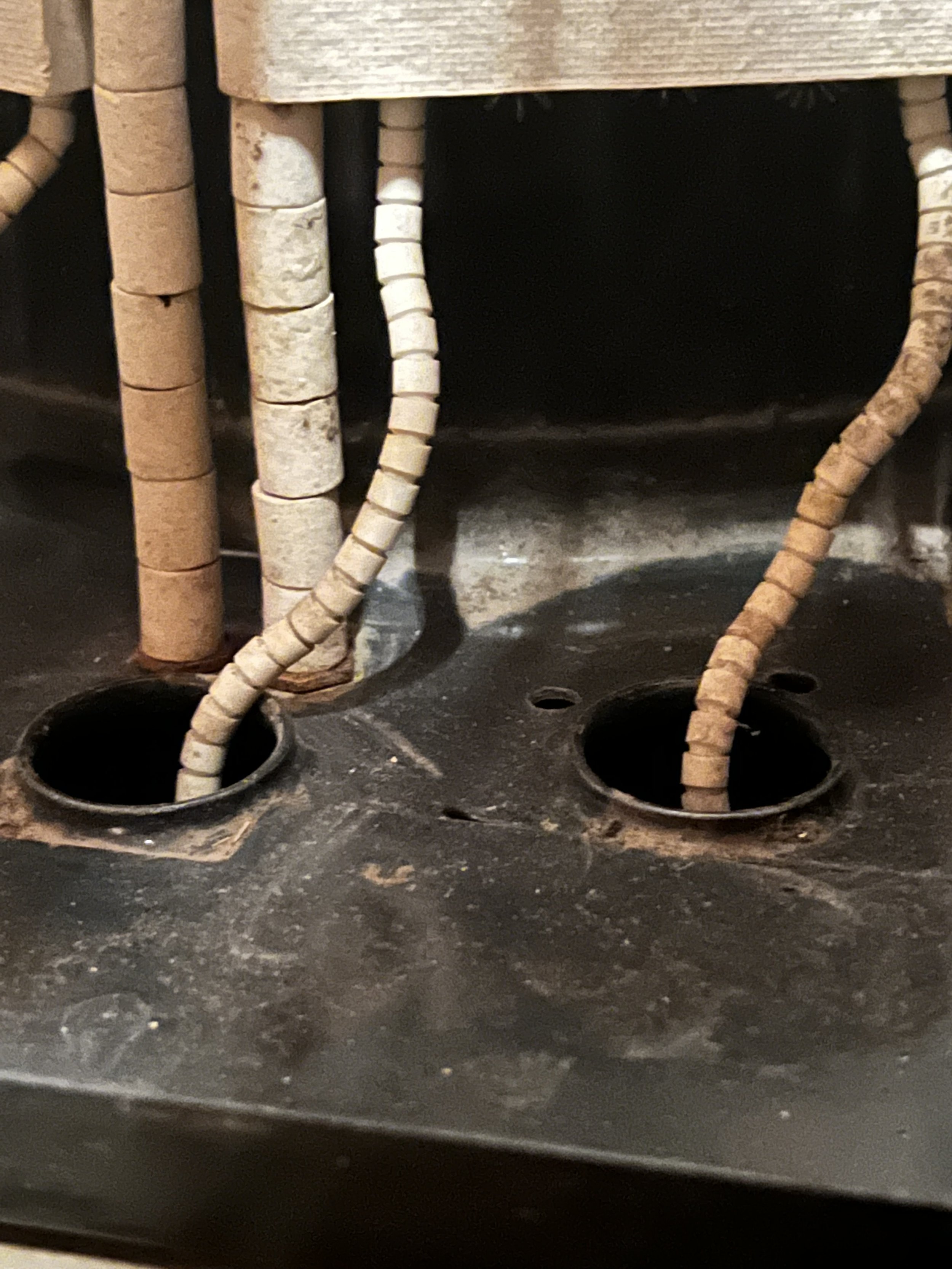

Close up.

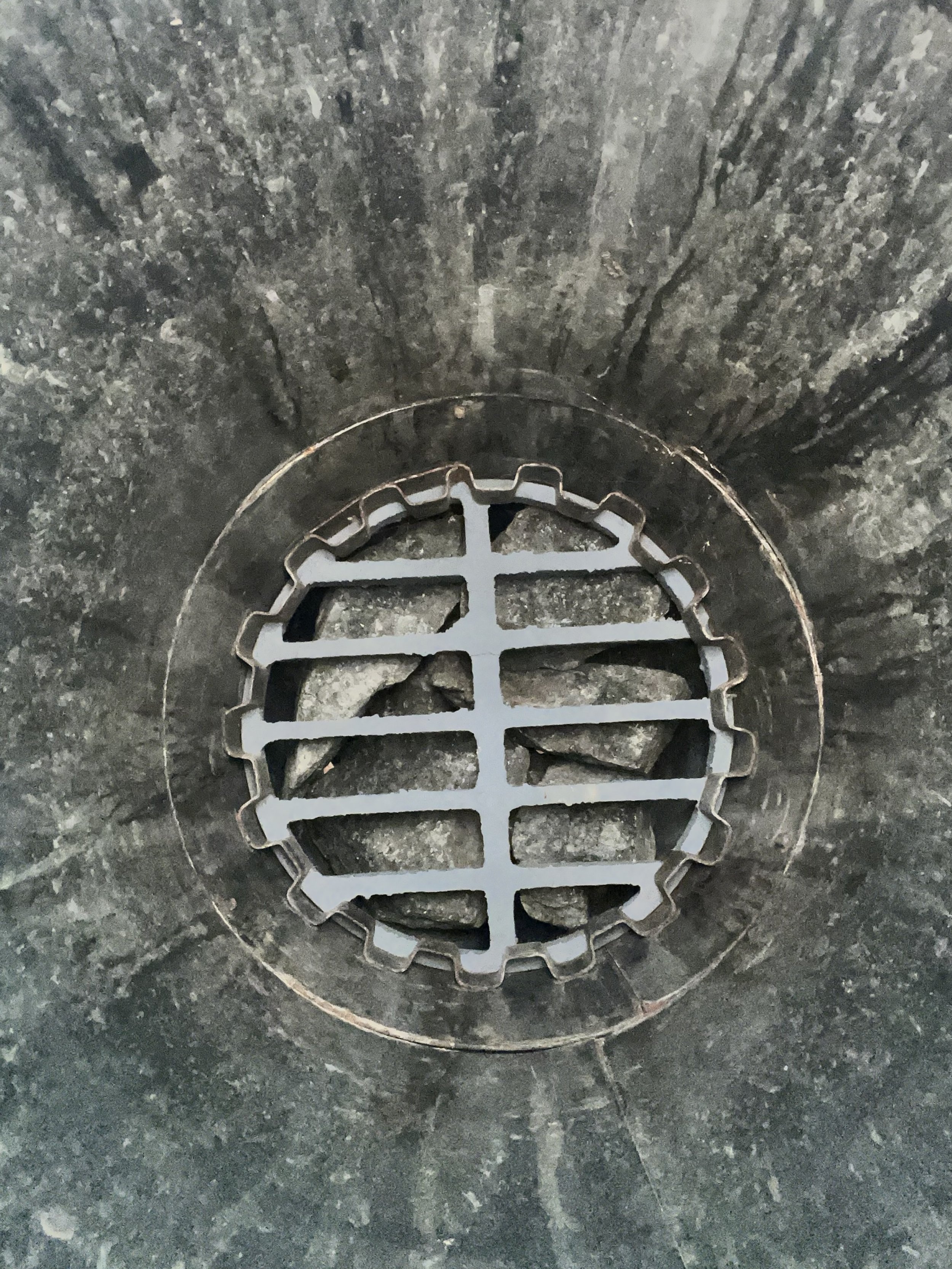

Looking up from bottom into hollow cylinder--grate is where rocks rest.
Looking up from bottom.
Underneath--beige is wire box and blue is cylinder.

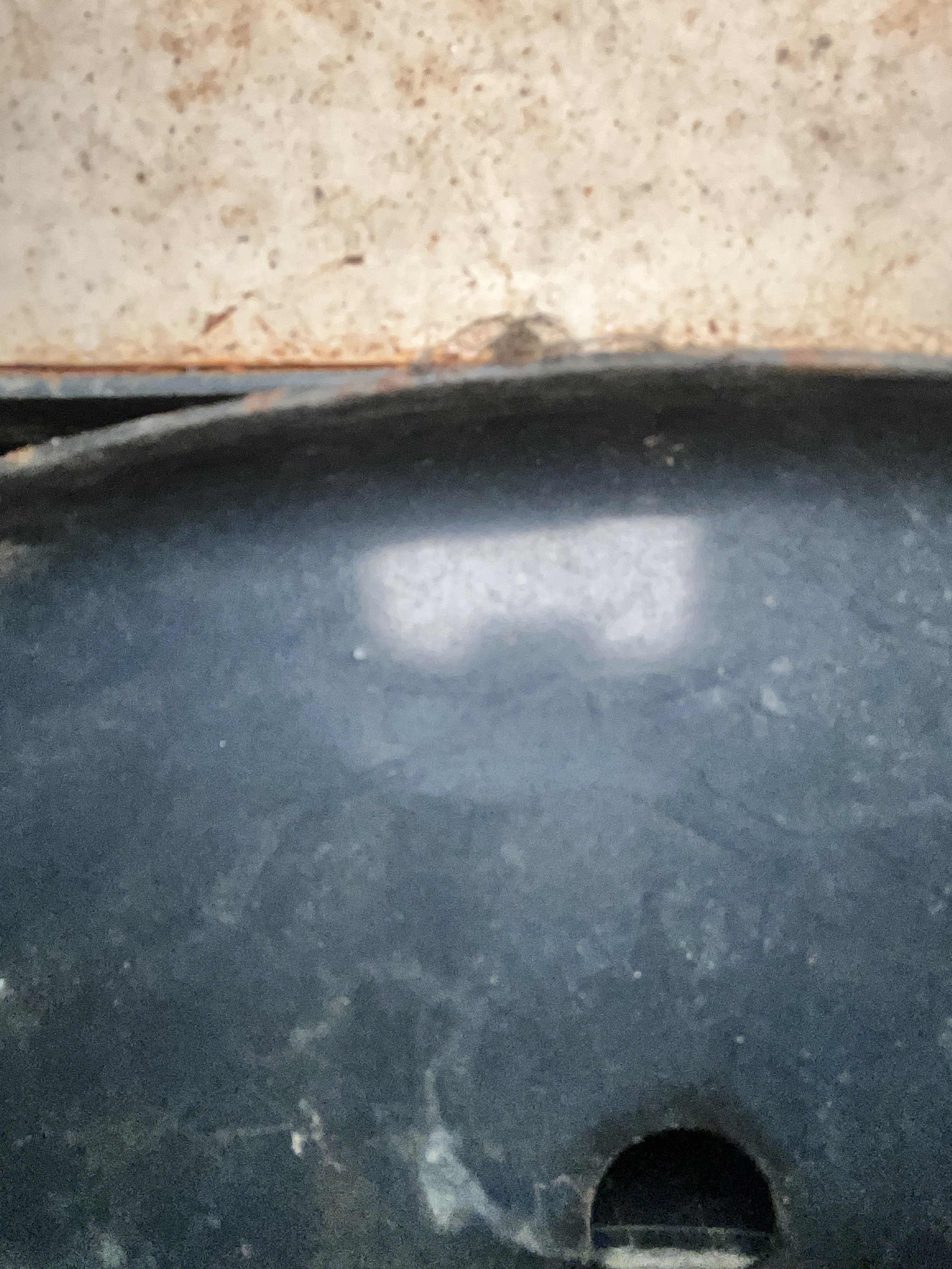

Only one hole underneath heater. I got my finger up there--no buttons, etc.

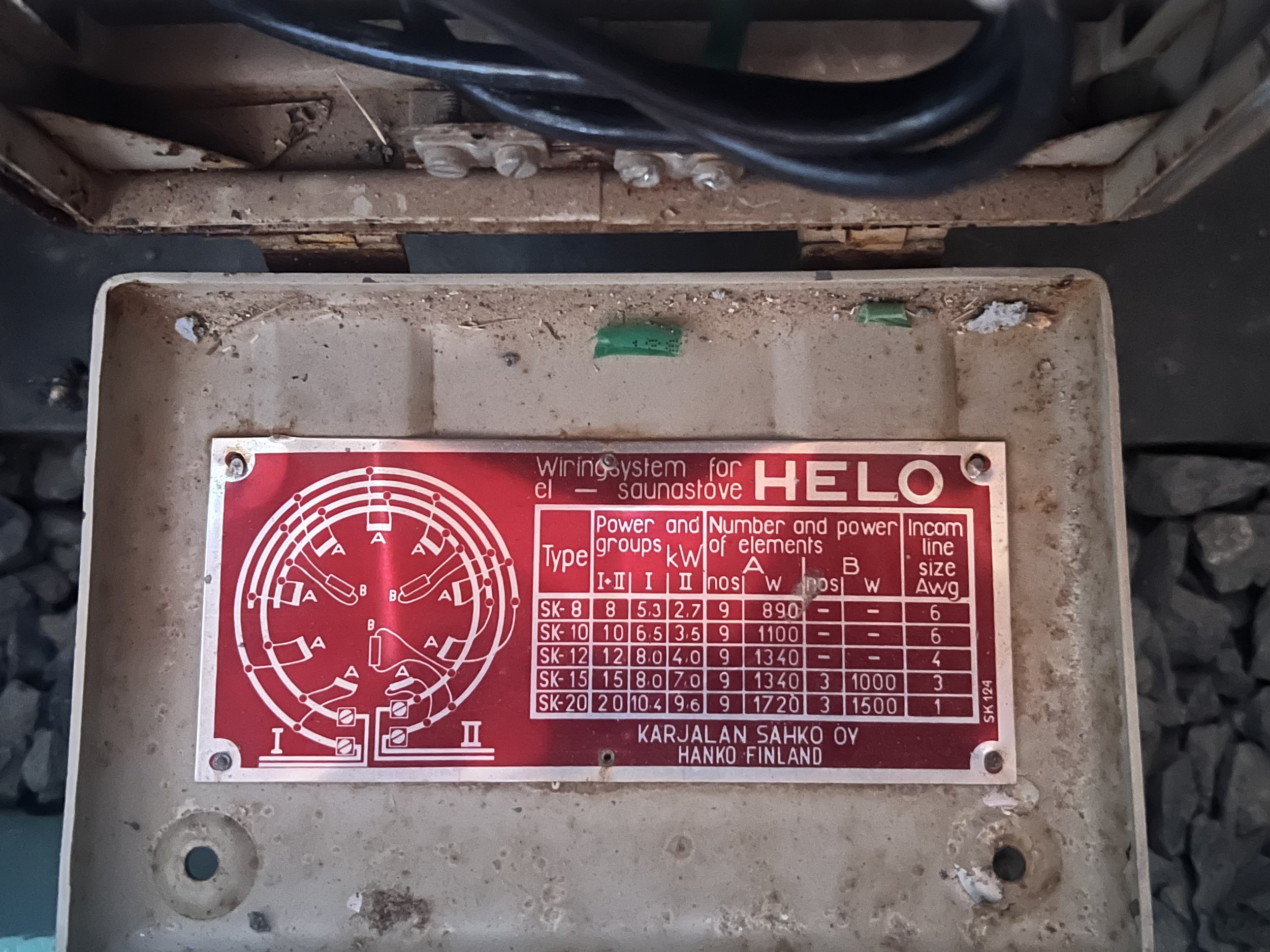

Wire box panel.

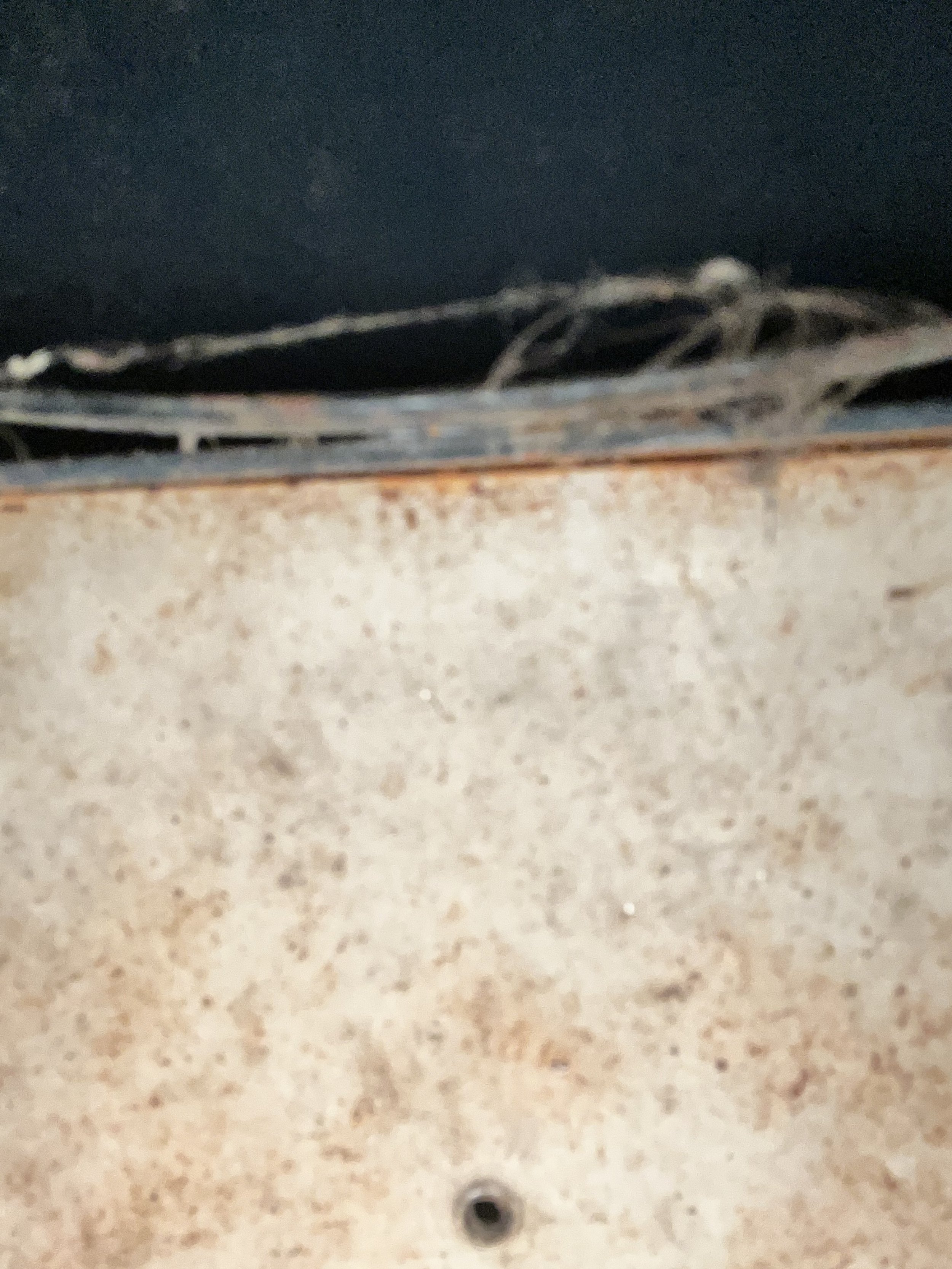

Found this little spot underneath wire box...just a hole.

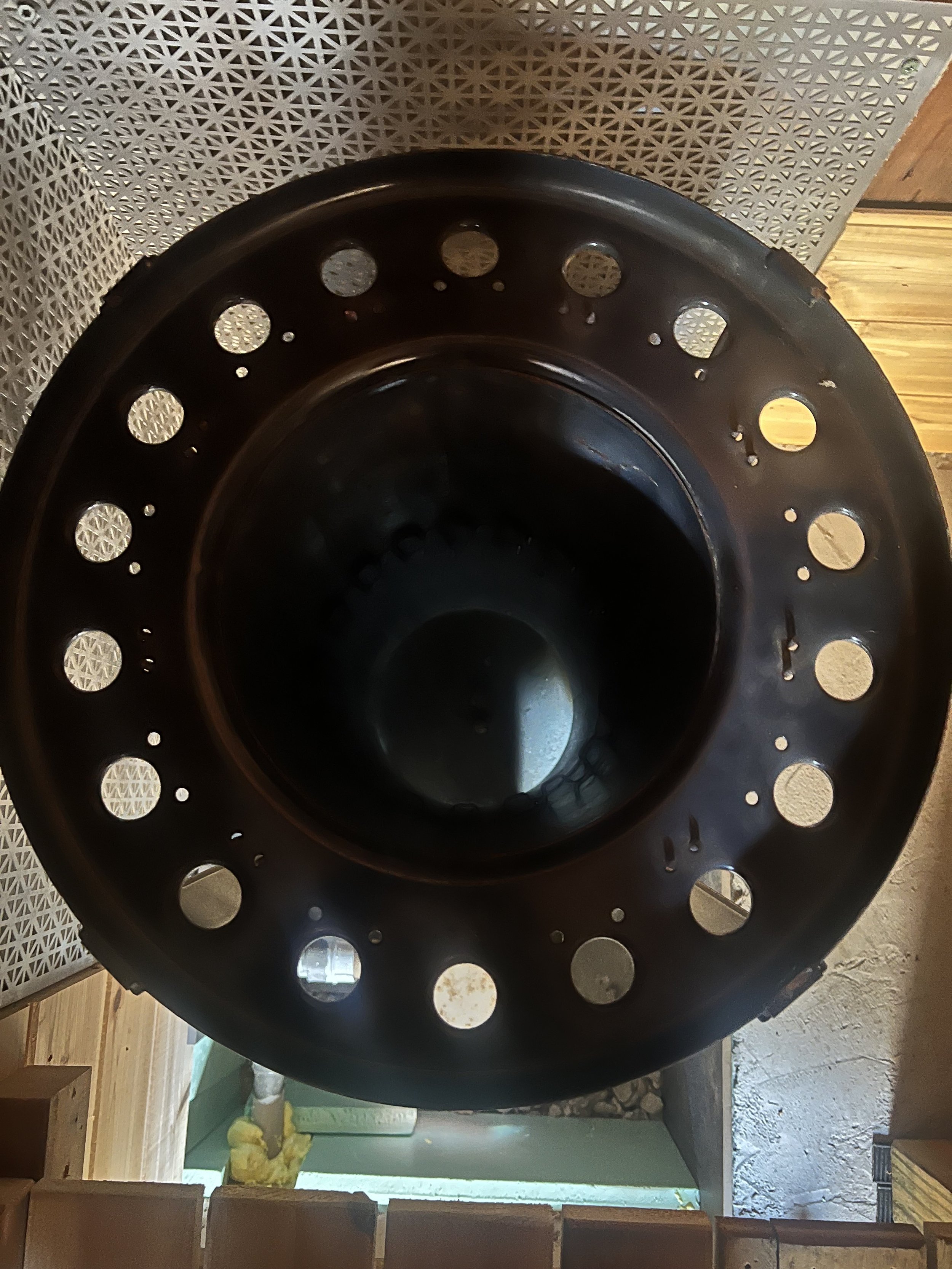

Looking from top down.

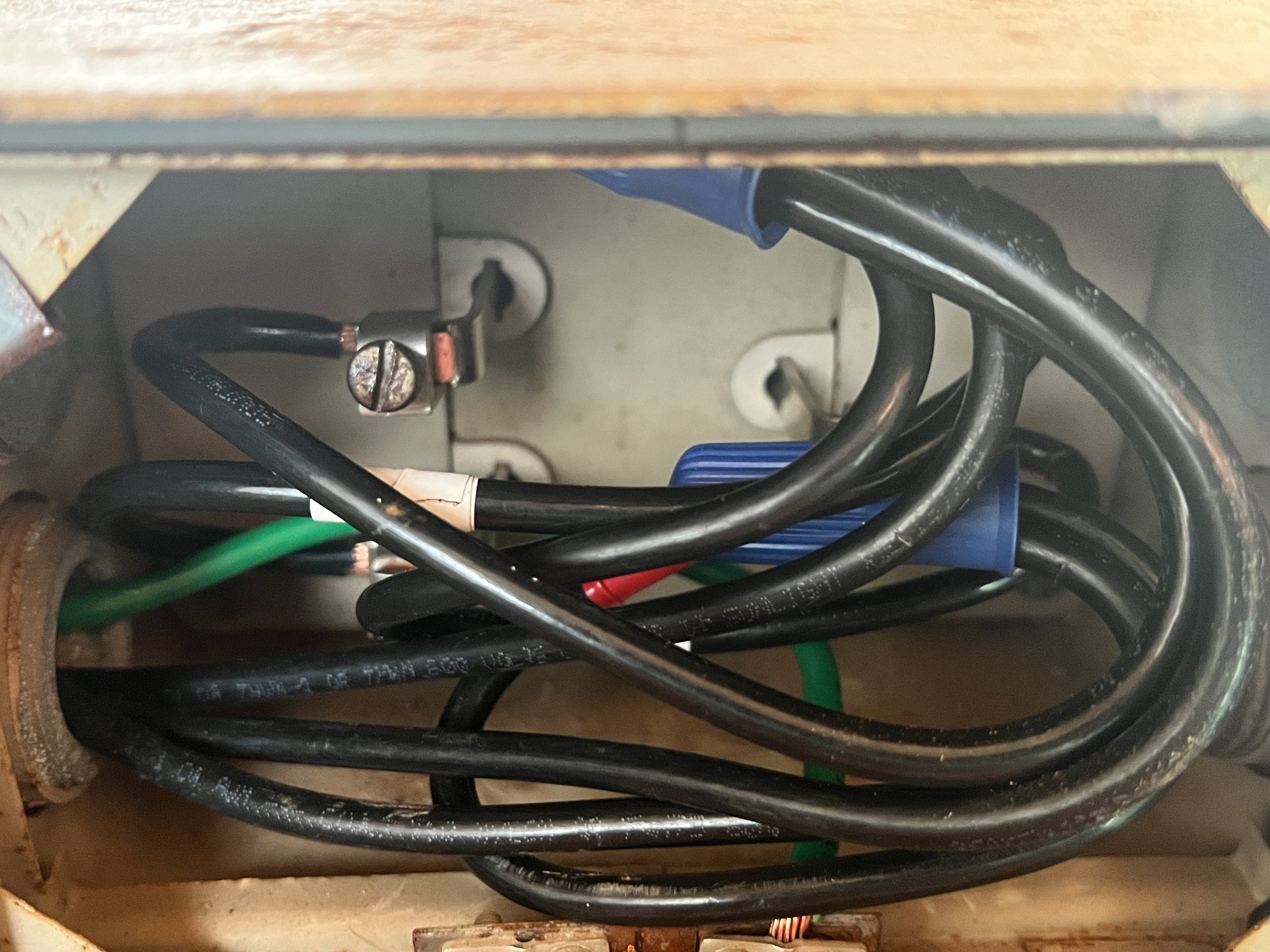

Inside wire box. #6 wire.
